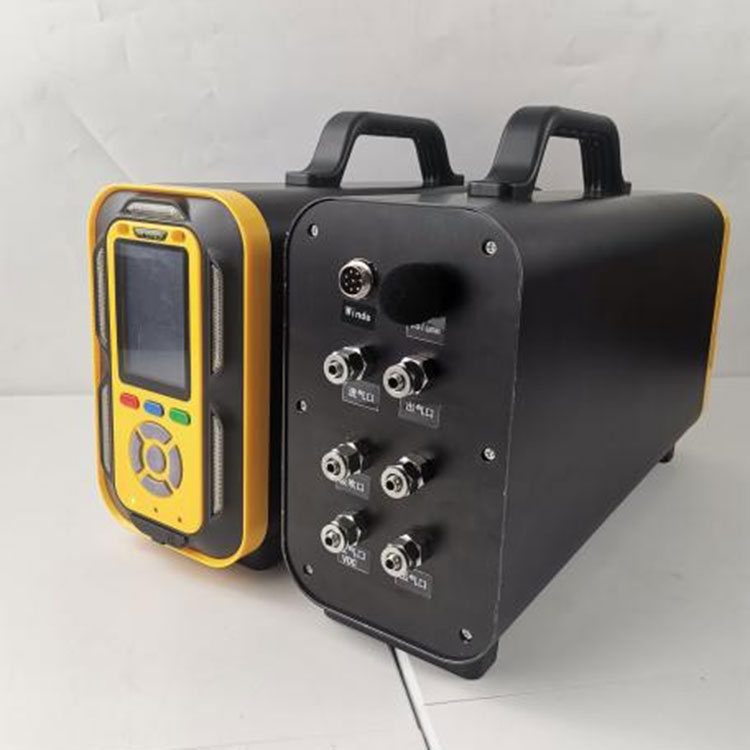

சிறிய காற்றின் தர மானிட்டர்

• ISO,CE,FCC, ROHS, ATEX,CNEX,SIL3 Approved
• Up to 30 pollutants with ppb accurancy
• Could integrated with metrological parameters and particles
• Built-in pump with 800ml/m flow rate
• Sound, light and vibration alarms (95 dB at 30 cm)
• Alarm types: LOW, HIGH, TWA ,STEL
• USB communication and battery charging port
• Optional Wifi, 4G, Lora wireless transfer
• built-in printer optional
• PC software for data acquisition and analysis
• 3.6VDC, 10000mA Rechargeable and detachable battery with UN38.3 & MSDS certification
• 3.5 inch colorful large digital display
• Automatic calibration with calibration system or manual calibration
• 100,000 pieces data recording function

SPECIFICATIONS

• Detection parameters:

             CH2O: Electrochemical sensor, 0-10ppm, 0.01ppm resolution

             CO2: IR sensor, 0-2000ppm, 1ppm resolution

             CO: Electrochemical sensor, 0-100ppm, 0.1ppm resolution

             SO2: Electrochemical sensor, 0-100ppm, 0.1ppm resolution

             NO2:Electrochemical sensor, 0-1ppm, 0.001ppm resolution

             O3: Electrochemical sensor, 0-100ppm, 0.1ppm resolution

             CH4: Thermal conductivity sensor, 0-10000ppm, 1ppm resolution

             VOC: PID sensor, 0-2000ppm, 1ppm resolution

             PM2.5: laser sensor, 0.001mg/m3-1mg/m3,0.001mg/m3 resolution

             PM10: laser sensor, 0.001mg/m3-1mg/m3,0.001mg/m3 resolution

             Humidity: 0-100%

             Temperature: -40 ~120℃

• Lower Detection Limit: 0.1ppm
• Accuracy:≤±2% (F.S)
• Respond time: T90≤20S
• Sensor lifetime: 5-10 years
• Detection method: Pumped
• Stainless steel sampling probe (304),400mm, 200 degrees
• Carring case
• Battery: 3.7V,10000mAh
• Protection level: IP66
• Product Size: 230x210x125mm(L×W×H)
• Weight: 2.5Kg
• Protection grade: Exia II CT4 Ga /Ex ib I Mb
• Working environment: -40℃～+70℃, ≤95%RH (non-condensing occasions)
• Warranty time: 1 year
